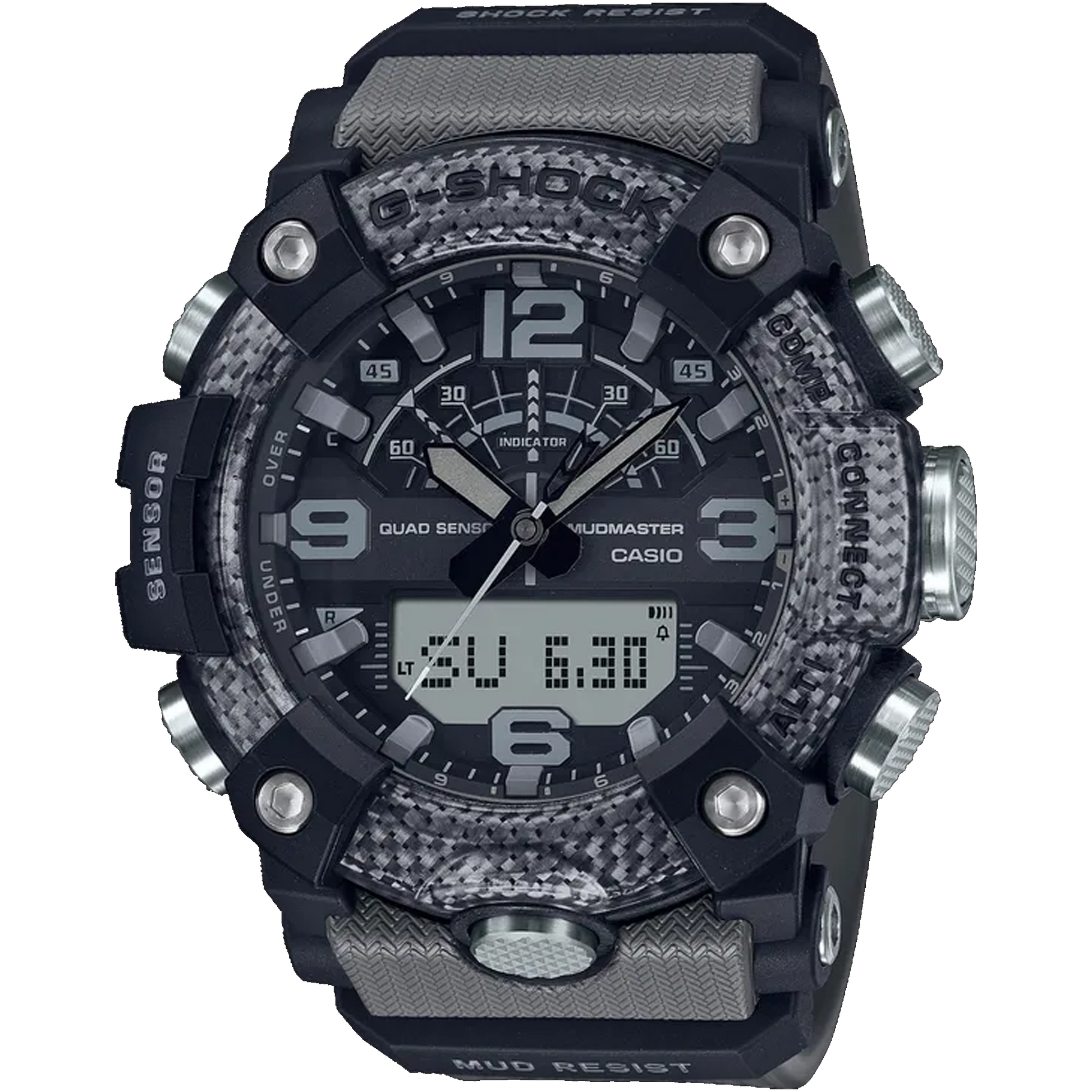

Designed for pros working in tough environments, this Bluetooth Quad Sensor MUDMASTER takes advantage of carbon fiber’s exceptional strength-to-weight ratio to take timekeeping to entirely new heights. The bezel, made from carbon fiber inserts pressed between layers of resin, delivers outstanding toughness and practicality. And you can count on the exceptional functionality everyone expects from a G-SHOCK watch. Take on the harshest on-land terrain with the MUDMASTER GGB100-8A. Go totally off-road with this new watch in a two-tone, gray-on-black color scheme.
Quad Sensor capabilities use compact sensors that make it possible to pack compass, altitude/barometer, and temperature measurements, along with an accelerometer that keeps track of your step count, into a compact configuration. This provides the outdoor adventurer with the means to keep track of the surrounding environment while on the go. A special G-SHOCK app, which simplifies configuration of watch settings, also includes a new Mission Function. The app automatically records altitude data measured by the watch and route information acquired by a smartphone's GPS. Manually obtained altitude points can be plotted on your route.
Altitude measurement and the step count are used to perform consumed calorie calculations that take up and down grades into consideration, and to record the results in an activity log. A watch button operation can be used to record your current location with the app. Then the second hand indicates the bearing to the recorded location, while the digital display shows the distance to the location. These new models also support Mode Switching Customization.
Features
Super LED Dual illuminator
Quad Sensor
Depth Meter, Digital Compass, Barometer/Altimeter, Thermometer
Mud Resistant
Specifications
Shock Resistant
Mud Resistant
Carbon Core Guard structure
Mineral Glass
Spherical Glass
Neobrite
200-meter water resistance
Case / bezel material: Carbon / Resin
Resin Band
Double LED light
LED light for the face (Auto LED light, Super illuminator, selectable illumination duration (1.5 seconds or 3 seconds), afterglow)
LED backlight for the digital display (Auto LED light, Super illuminator, selectable illumination duration (1.5 seconds or 3 seconds), afterglow)
Mobile link (Wireless linking using Bluetooth®)
Digital compass
Measures and displays direction as one of 16 points
Measuring range: 0 to 359°
Measuring unit: 1°
60 seconds continuous measurement
Hand indication of north
Magnetic declination correction
Direction calibration (2-point calibration, figure eight calibration, auto calibration)
Altimeter
Measuring range: –700 to 10,000 m (–2,300 to 32,800 ft.)
Measuring unit: 1 m (5 ft.)
Hand indication graph of altitude differential
Manual memory measurements (up to 14 records, each including altitude, date, time)
Auto log data (High/low altitudes, cumulative ascent and descent)
Others: Relative altitude readings (±100 m /±1000 m), selectable measurement interval: 5 seconds or 2 minutes (1 second for first 3 minutes only)
*Changeover between meters (m) and feet (ft)
Barometer
Measuring range: 260 to 1,100 hPa (7.65 to 32.45 inHg)
Measuring unit: 1 hPa (0.05 inHg)
Hand indication of pressure differential (±10 hPa)
Atmospheric pressure tendency graph (last 20 hours or last 56 hours)
Barometric pressure tendency information alarm (beep and arrow indicates significant changes in pressure)
The atmospheric pressure tendency graph can show the last 20 minutes or last 56 minutes of measurements. The hand indication of pressure differential shows values in units of ±1 hPa.
*Changeover between hPa and inHg
Thermometer
Measuring range: –10 to 60°C (14 to 140°F)
Measuring unit: 0.1°C (0.2°F)
*Changeover between Celsius (°C) and Fahrenheit (°F)
Step count using a 3-axis acceleration sensor: 0 to 999,999 step count display range
Power Saving: Auto sensor sleep state entry after fixed period of non-activity
World time
38 time zones (38 cities + coordinated universal time), daylight saving on/off, Home city/World time city swapping
Sunrise, sunset time display
Sunrise time and sunset time for specific date
1/100-second stopwatch
00'00''00~59'59''99 (for the first 60 minutes)
1:00'00~23:59'59 (after 60 minutes)
Measuring unit:
1/100 second (for the first 60 minutes)
1 second (after 60 minutes)
Measuring modes: Elapsed time, split time, 1st-2nd place times
Countdown timer
Measuring unit: 1 second
Countdown range: 24 hours
Countdown start time setting range: 1 second to 24 hours (1-minute increments and 1-hour increments)
